Pharmacy Vending Machine — 24/7 OTC Medicine, Health Kiosk & Robotic Dispenser Solutions
The world’s most complete pharmacy automation lineup from a single factory: 5 OTC medicine vending machines (107–369 channels), 2
multi-functional health check kiosks (height/weight/BP/ECG/SpO2), and a robotic pharmacy dispenser handling 2,000 boxes per hour.
SHMIRACLE serves retail pharmacies, hospitals, clinics, gyms, hotels, and community health programs in 100+ countries with CE/FCC/ISO
certified pharmacy vending machines.
💊 8 Models in Lineup | 🌡️ Refrigerated 4–25°C |
🤖 Robotic Arm Dispensing | 🩺 Health Check Integrated

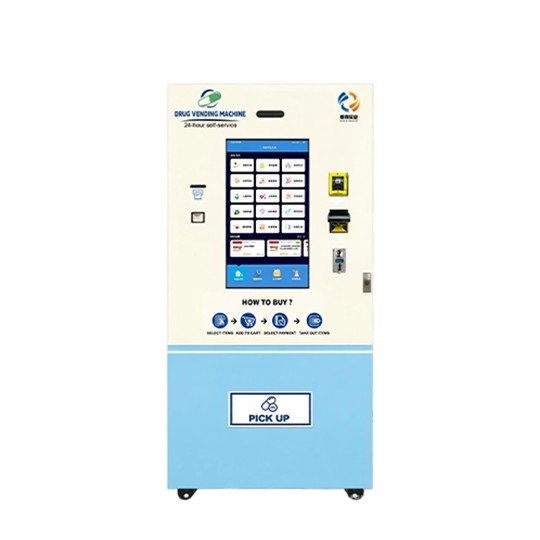

AZ-Pharma01 — 155-Channel Standard OTC Medicine Vending Machine
The AZ-Pharma01 is our standard-configuration 32″ pharmacy vending
machine — the workhorse model for independent pharmacies, gym
recovery stations, and hotel medical needs.
🎨 Key Features:
• 32-inch HD touchscreen with intuitive medicine browsing

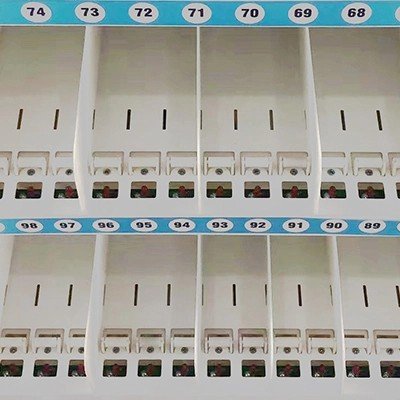

• 155 dispensing channels — covers wide OTC SKU range
• Optional refrigeration (4–25°C) for sensitive medications
• Bill / coin / card / mobile / QR payment options
📐 Specifications:

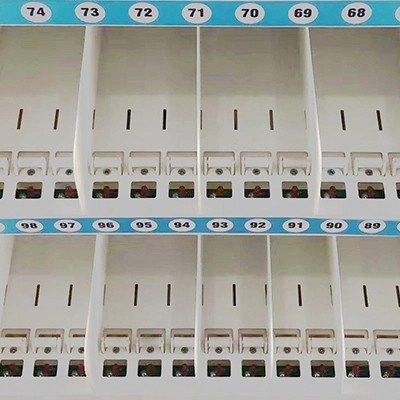

• Channel Quantity: 155 pcs
• Capacity: 700–1,300 boxes (depending on product size)
• Dimensions: 897 × 975 × 1992 mm
• Power: 550W
• Voltage: 110V – 220V (50/60Hz)
• Storage Temp: Room temp or refrigerated (4–25°C)
• Certifications: CE, FCC, ISO9001, ISO14001, ISO145001
💡 Best Use Cases:
✓ Independent pharmacy 24-hour annex
✓ Hotel lobby OTC station
✓ Gym recovery & supplement vending
✓ University campus health center
✓ Office building employee wellness

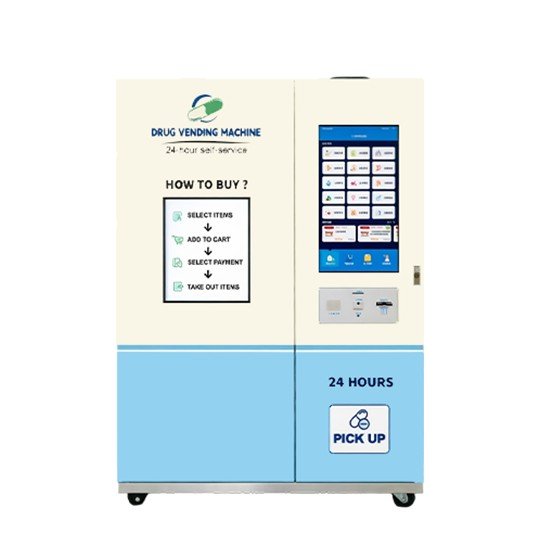

AZ-Pharma02 — 43"+32" Dual-Screen Premium OTC Vending Machine
The AZ-Pharma02 is our **dual-screen premium** model — featuring
a massive 43″ upper display for product education + 32″ lower
touchscreen for transactions. Ideal for high-end retail locations
where the machine doubles as a brand showcase.
🎨 Key Features:
• **Dual screens**: 43″ (upper marketing) + 32″ (lower interaction)
• Plays educational/promotional video while idle
• Premium retail aesthetic — designed for visible storefronts
📐 Specifications:
• Channel Quantity: 155 pcs
• Capacity: 700–1,300 boxes
• Dimensions: 850 × 1350 × 2047 mm
• Power: 550W
• Other specs: Same as AZ-Pharma01
💡 Best Use Cases:
✓ Premium pharmacy chain flagship locations
✓ Shopping mall pharmacy kiosks
✓ Airport health stations
✓ Wellness brand pop-up retail
AZ-Pharma03 — 369-Channel High-Capacity Pharmacy Vending Machine
The AZ-Pharma03 is our **highest-capacity** standard pharmacy
vending machine — 369 channels and up to 3,000 boxes capacity.
The right choice when you need to offer the broadest medicine
selection from a single unit.
🎨 Key Features:
• **369 channels** (industry-leading single-cabinet capacity)
• Up to 3,000 boxes capacity
• 32-inch touchscreen with category-organized browsing
• Built for high-volume / multi-day-stock locations
📐 Specifications:
• Channel Quantity: **369 pcs** ⭐
• Capacity: **1,800–3,000 boxes** ⭐
• Dimensions: 1102 × 1600 × 2200 mm
• Power: 550W
• Other specs: Same as series
💡 Best Use Cases:
✓ 24-hour pharmacy main kiosk
✓ Hospital lobby outpatient pharmacy
✓ Large mall multi-brand pharmacy station
✓ Major transit hub (airport / train station)
✓ Resort / cruise ship medical retail

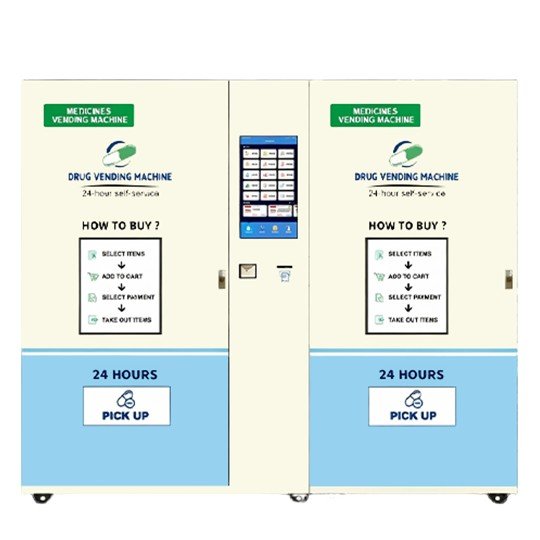

AZ-Pharma04 — 310-Channel Dual-Screen Pharmacy Vending Machine
The AZ-Pharma04 combines high capacity (310 channels) with the
premium dual-screen design — for retail flagships that need both
broad selection AND brand showcase.
🎨 Key Features:
• **Dual screens**: 43″ upper + 32″ lower
• 310 channels (high capacity)
• Wide-format design (good for storefront windows)
📐 Specifications:
• Channel Quantity: 310 pcs
• Capacity: 1,500–2,500 boxes
• Dimensions: 850 × 2325 × 2047 mm (extra wide)
• Power: 550W
• Other specs: Same as series
💡 Best Use Cases:
✓ Flagship retail pharmacy (visible storefront)
✓ Large airport / train station medical kiosks
✓ Multi-brand pharmacy partnership locations
✓ University hospital outpatient pharmacy

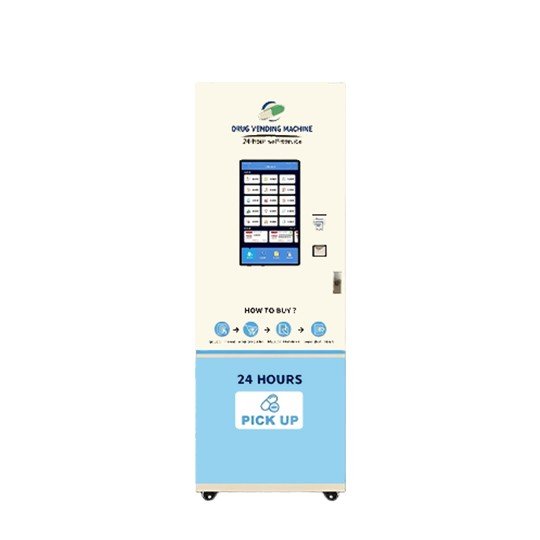

AZ-Pharma05 — Compact 21.5" Entry-Level Pharmacy Vending Machine
The AZ-Pharma05 is our **compact entry-level** pharmacy vending
machine — small footprint (only 630 mm wide), 107 channels, perfect
for small clinics, gyms, hotels, and tight retail spaces.
🎨 Key Features:
• Smallest footprint in lineup (630 × 896 mm)
• 21.5″ touchscreen
• 107 channels (curated selection)
• Lower entry investment
📐 Specifications:
• Channel Quantity: 107 pcs
• Capacity: 500–900 boxes
• Dimensions: 630 × 896 × 1992 mm
• Power: 550W
• Other specs: Same as series
💡 Best Use Cases:
✓ Small clinic waiting room
✓ Gym / fitness center supplement station
✓ Boutique hotel medical corner
✓ Office building employee wellness corner
✓ Convenience store partnership (limited SKU)
✓ Entry-level entrepreneur testing the concept
🟧 AZ-PD — Robotic Pharmacy Automated Dispensing System
The AZ-PD is SHMIRACLE’s **flagship pharmacy automation system** —a robotic arm-based automated dispensing cabinet designed for
hospitals, large retail pharmacies, and centralized medication management facilities.
This is in a different product category from our vending machines:the AZ-PD is back-office pharmacy automation infrastructure that
serves pharmacists and pharmacy technicians, replacing manual counting/sorting/dispensing of high-volume prescription operations.
🟦 OTC Medicine Vending Machines — 5-Model Lineup
MIRACLE’s medicine vending machine series serves retail pharmacy extensions, 24-hour pharmacy kiosks, hotel/airport medical needs,gym recovery stations, and university health corners. All 5 models support OTC medicine, supplements, PPE, condoms, first-aid kits,and cosmetics — with optional refrigeration (4–25°C) for sensitive products like insulin, eye drops, and certain medications.
| Model | Channels | Capacity | Screen | Footprint |
|---|---|---|---|---|
| 💊 AZ-Pharma01 | 155 | 700–1,300 | 32″ | 897×975×1992 mm |
| 💊 AZ-Pharma02 | 155 | 700–1,300 | 43″+32″ Dual | 850×1350×2047 mm |
| 💊 AZ-Pharma03 | 369 ⭐ | 1,800–3,000 ⭐ | 32″ | 1102×1600×2200 mm |
| 💊 AZ-Pharma04 | 310 | 1,500–2,500 | 43″+32″ Dual | 850×2325×2047 mm |
| 💊 AZ-Pharma05 | 107 | 500–900 | 21.5″ | 630×896×1992 mm |
⚖️ **Prescription (Rx) Optional**: Models 01–04 support optional pharmacist-remote-verification SDK integration for jurisdictions that allow prescription dispensing via vending. Default configuration is **OTC + supplements** (compliant in most countries without licensing).
Why Smart Pharmacy Vending Machines Are the Future of Medicine Retail？
| 📈 24/7 Medicine Access Traditional pharmacies close at 9pm or 10pm. But fevers spike at 2am, allergies strike on Sundays, and travelers need pain relief anytime. A 24-hour pharmacy vending machine captures every emergency moment — typically generating 30-40% of revenue during off-hours. |
🌍 Underserved Market Access In rural communities and developing markets, pharmacy vending machines bring medicine access where pharmacist staffing is impossible. WHO data: 2 billion people lack reliable medicine access — vending automation is part of the solution. |
| 💰 Lower Operating Cost vs. Staffed Pharmacy • No overnight pharmacist staffing cost ($60K–$120K/year saved) • Reduced rent (1–2 m² footprint vs. 50 m² shop) • Zero shrinkage from theft (locked dispensing) • Inventory accuracy: 99.5%+ vs. 92% manual |
📊 Market Trend (2024–2030) Global Intelligent Drug Vending Machine market: USD 1.5B (2024) → projected USD 4B+ (2030). Growth drivers: aging population, rising healthcare costs, post-COVID telemedicine adoption, and pharmacy labor shortages. |
| 🏥 Hospital Operational Efficiency • Robotic pharmacy systems reduce dispensing errors by 80%+ • Pharmacy technicians freed from counting/sorting • Real-time medication tracking + audit trail • Compliance with HIPAA / GMP / FDA documentation |
🏭OEM & Private-Label Pharmacy Vending Machine Manufacturing
MIRACLE is a leading pharmacy vending machine manufacturer with 12+ years of vending technology + medical device engineering experience, exporting to 100+ countries with comprehensive OEM/ODM services for healthcare brands and pharmacy chains.
| 🎨 **Customization Options**: ✓ Cabinet color (any RAL/Pantone) ✓ Brand logo + decorative graphics application ✓ Touchscreen UI/UX customization (your brand colors, layout, language) ✓ Channel number adjustment (107 / 155 / 310 / 369 / custom) ✓ Refrigeration zone configuration ✓ Payment system localization ✓ Health test module selection (for H01/H02) ✓ Pharmacist remote-verification SDK integration ✓ Insurance / HSA / FSA card processing ✓ Custom dispensing channel sizing for specific products📦 **MOQ & Lead Time**: • OEM minimum: 5 units (small batch friendly) • Standard lead time: 30–45 days (Pharma series) • PD robotic system: 60–90 days (custom engineering) • Bulk orders (50+): dedicated production line |
📋 **Certifications**: ✓ CE (Europe) ✓ FCC (USA) ✓ ISO 9001 (Quality Management) ✓ ISO 14001 (Environmental Management) ✓ ISO 145001 (Medical Devices Quality Management) ✓ RoHS (PD model) ✓ Custom certifications available on request🚢 **Shipping & Installation**: ✓ Sea freight: door-to-port worldwide ✓ Express air for sample units ✓ Installation manual + video tutorials in your language ✓ Optional on-site engineer dispatch (PD requires) ✓ Operator training (in-person or remote) ✓ 24/7 remote technical support (1-year free) |
- 🟦 OTC Medicine Vending Machines (Pharma Series)
- 🌡️Refrigerated Storage for Temperature-Sensitive Medications
- 💳 Smart Features Built for Modern Pharmacy Retail
| Specification | AZ-Pharma01 | AZ-Pharma02 | AZ-Pharma03 | AZ-Pharma04 | AZ-Pharma05 |
| Product Size | 897*975*1992mm | 850*1350*2047mm | 1102*1600*2200mm | 850*2325*2047mm | 630*896*1992mm |
| Touch Screen | 32-inch | 43+32-inch | 32-inch | 43+32-inch | 21.5-inch |
| Channel Qty | 155 pcs | 155 pcs | 369 pcs | 310 pcs | 107 pcs |
| Capacity | 700-1300 pcs | 700-1300 pcs | 1800-3000 pcs | 1500-2500 pcs | 500-900 pcs |
| Storage Temp | Room temp or refrigerated (4-25°C) | ||||
| Voltage | 110V~220V 50HZ/60HZ | ||||
| Payment | Bill/Coin/Card Reader (optional) | ||||
| Network | 4G/WiFi (optional) | ||||
| Color | White (optional) | ||||
| Power | 550W | ||||
| Protection | Power-off & Failure self-detection | ||||
| Certificates | CE, FCC, ISO9001, ISO14001, ISO145001 | ||||
| Function | SDK supported | ||||
| Interface | MDB / DEX | ||||
Many medications require temperature-controlled storage:
– 💉 Insulin (2–8°C)
– 👁️ Eye drops (some require refrigeration after opening)
– 💊 Certain antibiotics, vaccines, biologics
– 🧴 Probiotics and live cultures
– 🌡️ Heat-sensitive OTC products in tropical climates
All MIRACLE pharmacy vending machines (AZ-Pharma01–05, AZ-H02,
AZ-PD) support **adjustable refrigerated storage from 4–25°C**,
making them suitable for both standard OTC and refrigerated
medication categories.
✅ **Safety Features**:

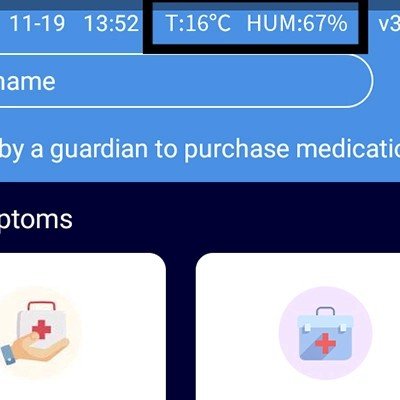

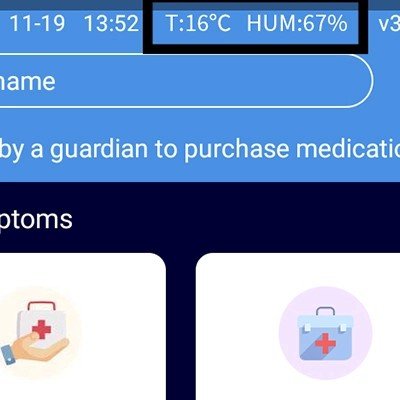

• Continuous temperature monitoring + alerts
• Power-off protection (battery backup for critical cooling)
• Failure self-detection (auto-alerts to operator)
• Door-locked dispensing (no customer hand-touch of medications)
• Tamper-evident packaging support
• Lot number + expiry date tracking
✅ **Compliance Documentation**:
• Full transaction logs for regulatory audit
• Optional pharmacist remote-verification (Rx jurisdictions)
• HIPAA-compatible data handling (US deployments)
• GDPR-compliant data flows (EU deployments)
• GMP / GSP storage temperature compliance
🖥️ **Touchscreen Customer Experience**
• 21.5″ / 32″ / 43″ HD touchscreen options
• Multi-language UI (English, Spanish, Arabic, Chinese, etc.)
• Visual medicine browsing with photos + ingredient info
• Allergy / interaction warnings (for OTC)
• Optional pharmacist video-consult button

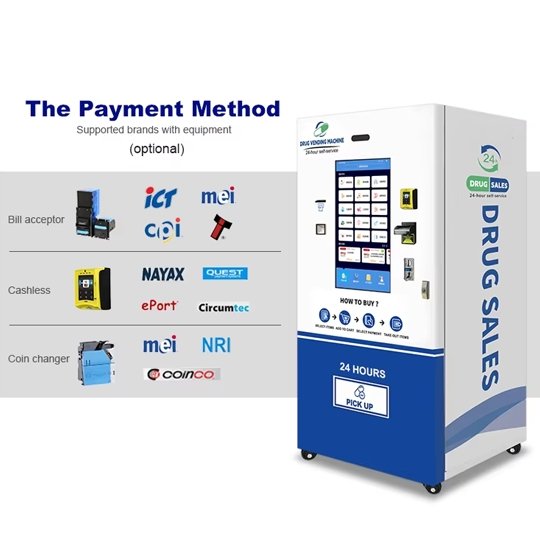

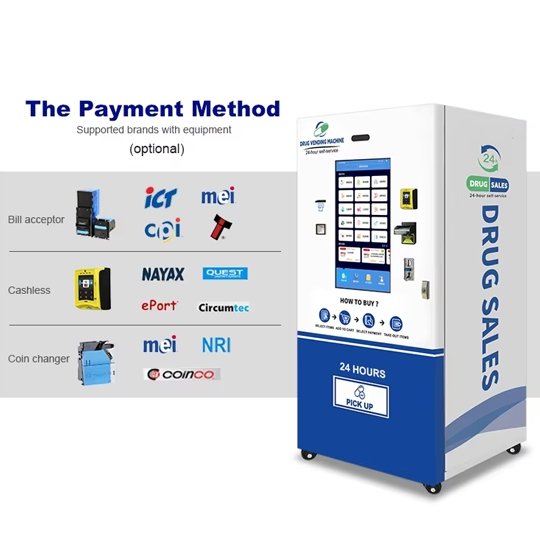

💳 **Payment Methods**
• Credit/debit card (Visa, MasterCard, Amex, Discover)
• Mobile pay (Apple Pay, Google Pay, Samsung Pay)
• QR code (WeChat Pay, Alipay, PayPay, etc.)
• Contactless NFC
• Bill / coin (cash) — optional add-on
• HSA/FSA card support (US deployments)
• Insurance card scanning (configurable)
📡 **Connectivity & Management**
• 4G or WiFi (configurable)
• Remote monitoring dashboard (web + mobile app)
• Real-time inventory + sales reporting
• Low-stock + expiry alerts pushed to operator
• Remote price update — no physical access needed
• SDK supported / MDB-DEX standard interface for integration
📊 **Analytics & Compliance**
• Customer purchase pattern data
• Best-selling SKU / time slots / day-of-week
• Inventory turnover analytics
• Regulatory audit trail export
• Insurance claim documentation export
Ready to Modernize Your Pharmacy Operations?
-
Whether you’re a single independent pharmacy looking to add a 24-hour sales channel, a hospital evaluating robotic dispensing, or a healthcare brand designing the next generation of telemedicine
kiosks — MIRACLE has the right pharmacy vending machine for you.Frequently Asked Questions About Pharmacy Vending Machines
MIRACLE pharmacy vending machines ‘prices vary depending on the configuration; please inquire.
Customers approach the machine, browse OTC medicines or health
products on the touchscreen, select items, and pay via card / mobile /
QR / cash. The dispensing channel releases the product to a secured
collection bin. The entire transaction takes 30–60 seconds with zero
staff required. For prescription-enabled units, an optional remote
pharmacist video-verification step can be added.
Yes — but jurisdiction-dependent. Most countries restrict
prescription dispensing to licensed pharmacists, but some jurisdictions
allow remote-pharmacist-verified vending dispensing. SHMIRACLE machines
support optional pharmacist remote-verification SDK integration. Default
configuration is OTC + supplements + medical accessories, which is
compliant in most countries without special licensing. Always verify
your local regulations.
MIRACLE is a direct manufacturer in Shanghai, China, exporting
to 100+ countries including USA, UK, Germany, Australia, Saudi Arabia,
Singapore, and many others. You can buy directly from us with no
middleman markup. Click “Request Quote” or contact us via WhatsApp.
– **AZ-Pharma01–05** are customer-facing **vending machines** —
customers buy directly from the touchscreen.
– **AZ-PD** is a back-office **robotic dispensing system** for
pharmacists to fulfill prescriptions — a robotic arm picks medications
from 720 channels at up to 2,000 boxes/hour. Used in hospitals and
large retail pharmacy chains for prescription fulfillment.
Yes! All SHMIRACLE pharmacy vending machines (Pharma01–05, H02,
PD) support adjustable refrigerated storage from 4–25°C, with continuous
temperature monitoring, power-off backup, and failure alerts. Suitable
for insulin, eye drops, vaccines, and other temperature-sensitive
medications.
A health check kiosk (AZ-H01, AZ-H02) is a self-service
diagnostic station that conducts vital sign measurements: height,
weight, blood pressure, body temperature, ECG, blood oxygen, body
composition, and more. The AZ-H02 combines health checks with medicine
vending — making it the closest thing to an unmanned mini-pharmacy.
MIRACLE pharmacy vending machines support credit/debit
cards (Visa/MasterCard/Amex), mobile pay (Apple Pay/Google Pay), QR
code (WeChat Pay/Alipay/local), contactless NFC, and optional cash
acceptance. US-deployed machines can integrate HSA/FSA card processing
and insurance card scanning on request.
Standard OEM lead time is 30–45 days (production) plus 25–45
days (sea freight, depending on destination). The AZ-PD robotic system
requires 60–90 days for custom engineering plus shipping. Total typical
delivery to most countries: 60–90 days for vending machines, 90–135
days for robotic systems.
Yes. We provide:
– Installation manual + video tutorials in your language
– Remote installation support via video call (free)
– Optional on-site engineer dispatch (recommended for AZ-PD)
– Operator training (remote or in-person)
– 24/7 remote technical support (1-year free, extended warranty available)
Yes — that’s the core value proposition. All SHMIRACLE pharmacy
vending machines are designed for 24/7 unattended operation with:
– Power-off & failure self-detection
– Remote monitoring dashboard
– Low-stock + temperature alerts
– Tamper-resistant cabinet construction
– Optional security camera integration
Depends on location and product mix. Typical scenarios:
– **Independent pharmacy 24h annex** (AZ-Pharma02): 10–20 transactions/
off-hour day × $15 average = $150–$300/day extra revenue. Payback
in 6–18 months.
– **Hotel lobby OTC** (AZ-Pharma05): Lower volume but high margin
($25 average ticket). Payback 12–24 months.
– **Hospital robotic pharmacy** (AZ-PD): Saves 1–2 pharmacy technician
FTEs ($60K–$100K/year) + reduces dispensing errors. Payback 18–30
months in most hospitals.
