Commercial Countertop Ice Makers
Square Cube & Crescent Ice Series · Fast 12–15 Min Cycle · 16 KG/24H Daily Capacity · R290 Eco Refrigerant
WATER SUPPLY GUIDE
3 Water Supply Modes — Choose What Fits Your Setup
AZ-ICM15/16/17 offer three different water intake methods to suit your kitchen or commercial counter layout. All models produce the same 16 KG/day of square ice with the same smart display panel.

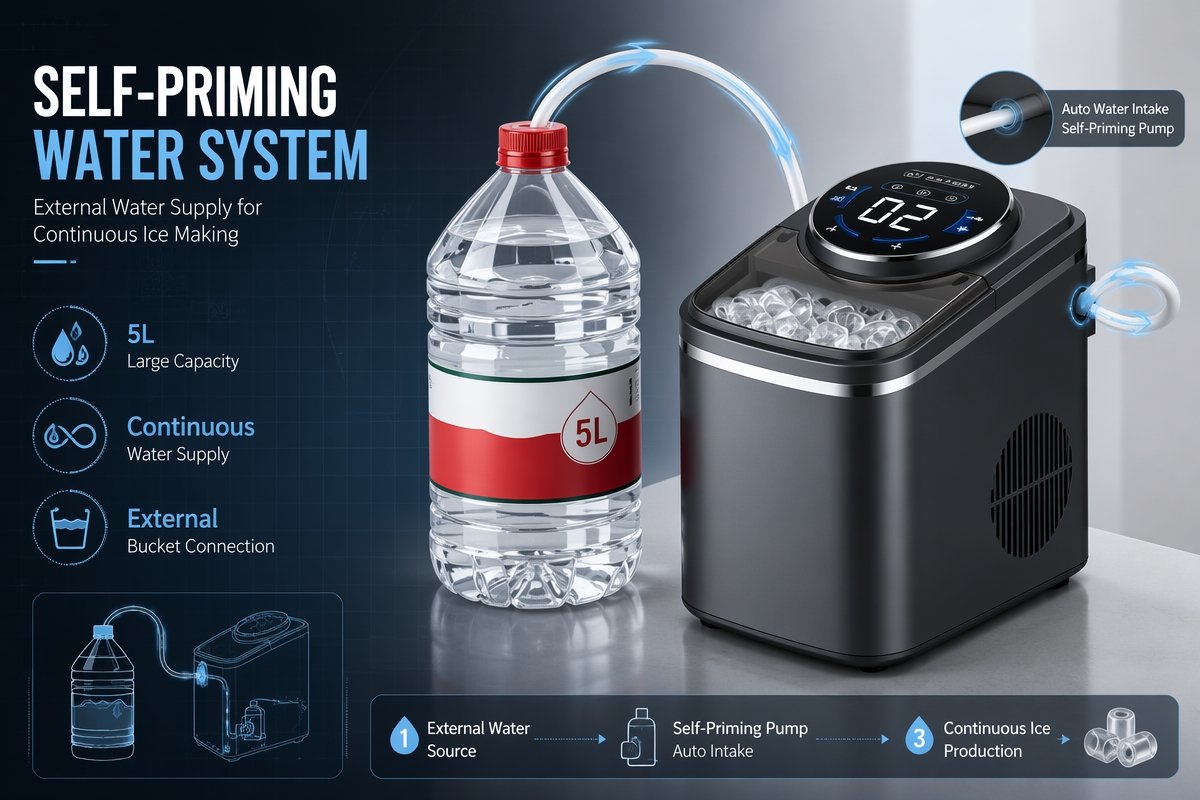

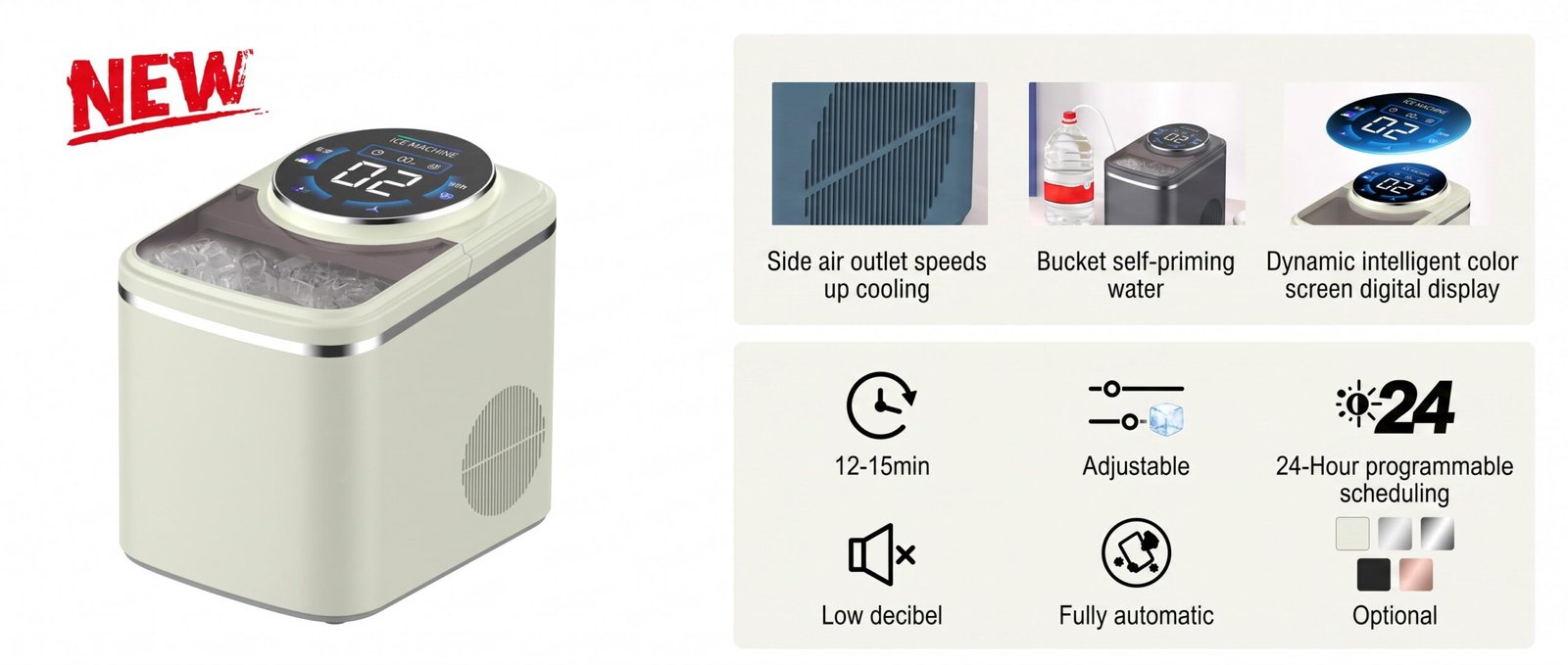

AZ-ICM15 — Auto-Suction
Connects directly to a standard 5L water barrel via a built-in suction pump. Fully hands-free refilling — the machine draws water automatically when the internal tank runs low. Best for busy counters where frequent manual refilling is impractical.

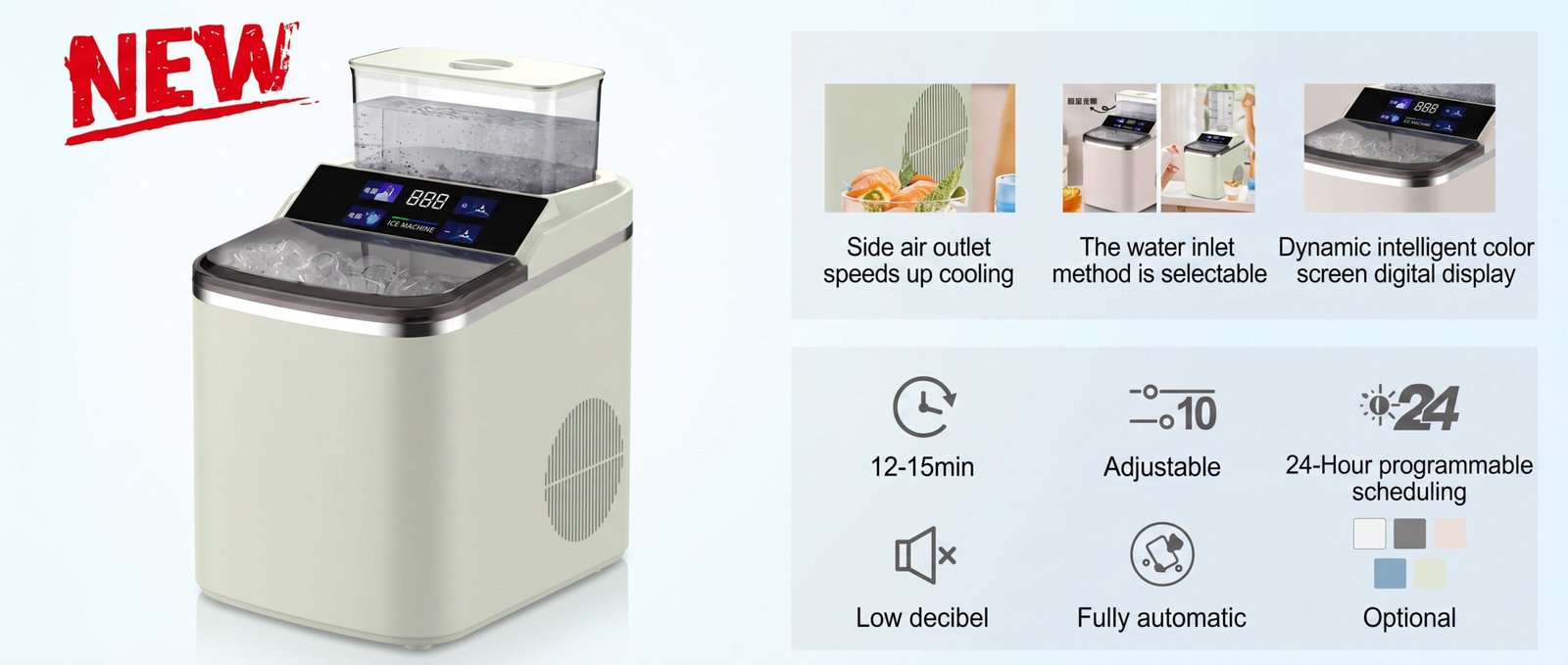

AZ-ICM16 — Storage Box
Features a large external water storage box on top for extended operation without frequent refilling. Supports manual fill, small barrel connection or water tank — the most flexible water supply option. Taller profile (383mm) to accommodate the reservoir.

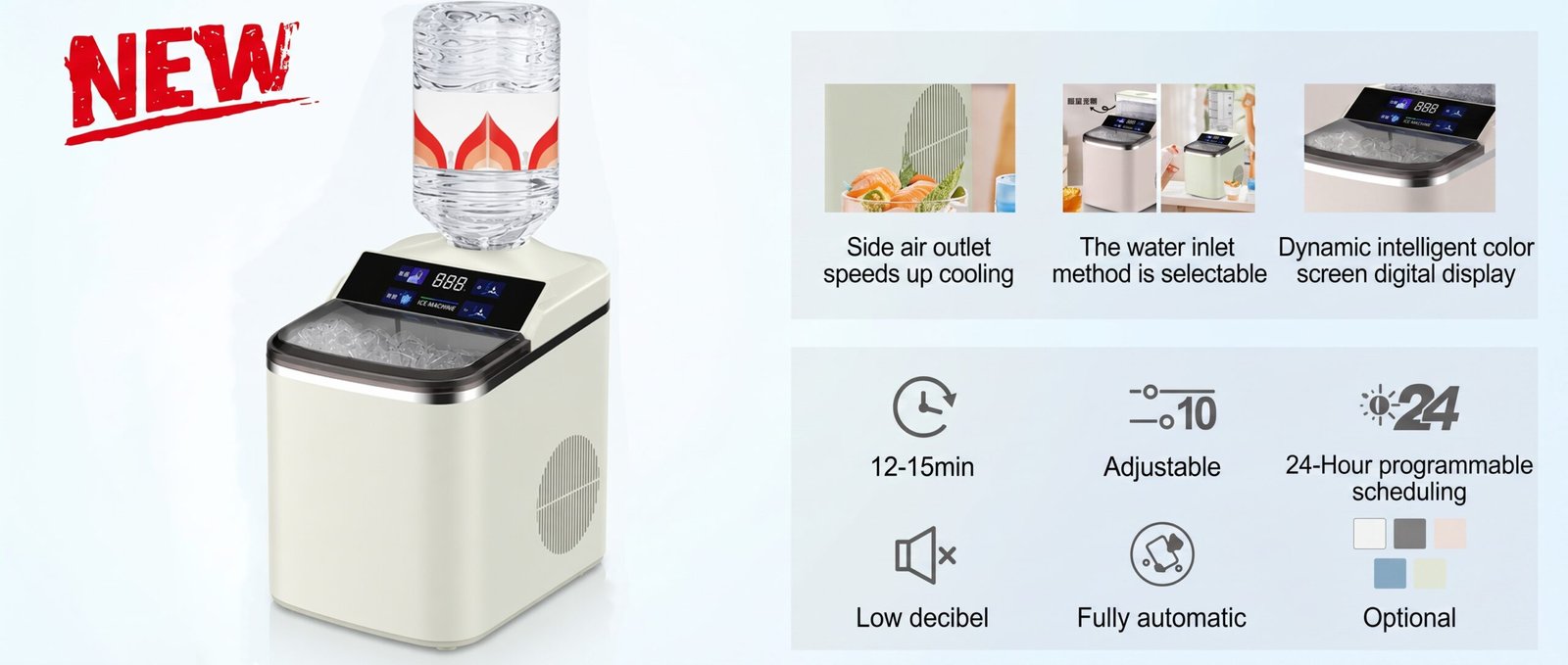

AZ-ICM17 — Small Barrel
Uses a compact small barrel or a built-in water tank for manual water addition. The most space-efficient option at 307×237×320mm — ideal for home kitchens, small cafés or wherever counter space is limited.
FULL SPECIFICATIONS
AZ-ICM15/16/17/18 Technical Specifications
| Specification | ICM15 | ICM16 | ICM17 | ICM18 |
|---|---|---|---|---|
| Ice Type | Square Cube (2×6 mm) | Crescent (2×8) | ||
| Voltage | 220/240V~50Hz or 110V~50/60Hz | |||
| Power | 120W · 0.84A | |||
| Ice per Cycle | 12 cubes | 12 or 16 | 12 or 16 | 16 cubes |
| Cycle Time | 12–15 min | |||
| Daily Output | 16 KG / 24H | |||
| Water Tank | 1.5 L | |||
| Ice Storage | 0.75 KG | |||
| Product Size (mm) | 307×237×314 | 307×237×383 | 307×237×320 | — |
| N.W. / G.W. | 6.5 / 7.1 KG | — | ||
| Refrigerant | R290 (Eco-Friendly) | |||
| Water Intake | Ext. barrel auto-suction | Manual + ext. box | Manual + small barrel | — |
SELECT YOUR MODEL
4 Models — Square & Crescent Ice Makers

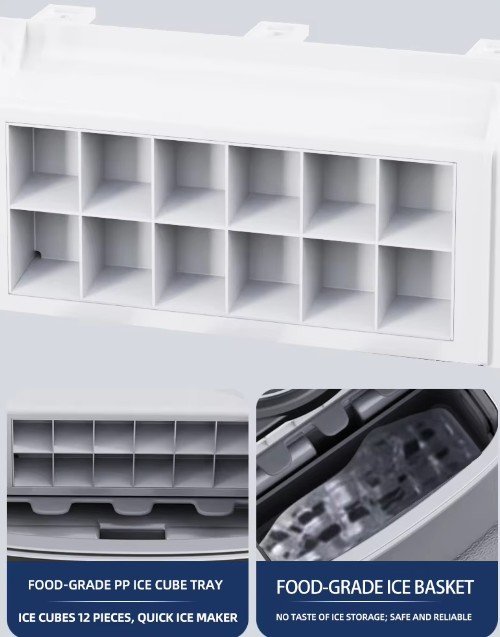

AZ-ICM15/16/17 produce square cube ice — they share identical output and specs; the only difference is the water supply method. AZ-ICM18 produces crescent-shaped ice with a tempered-glass display.
CRESCENT ICE SERIES

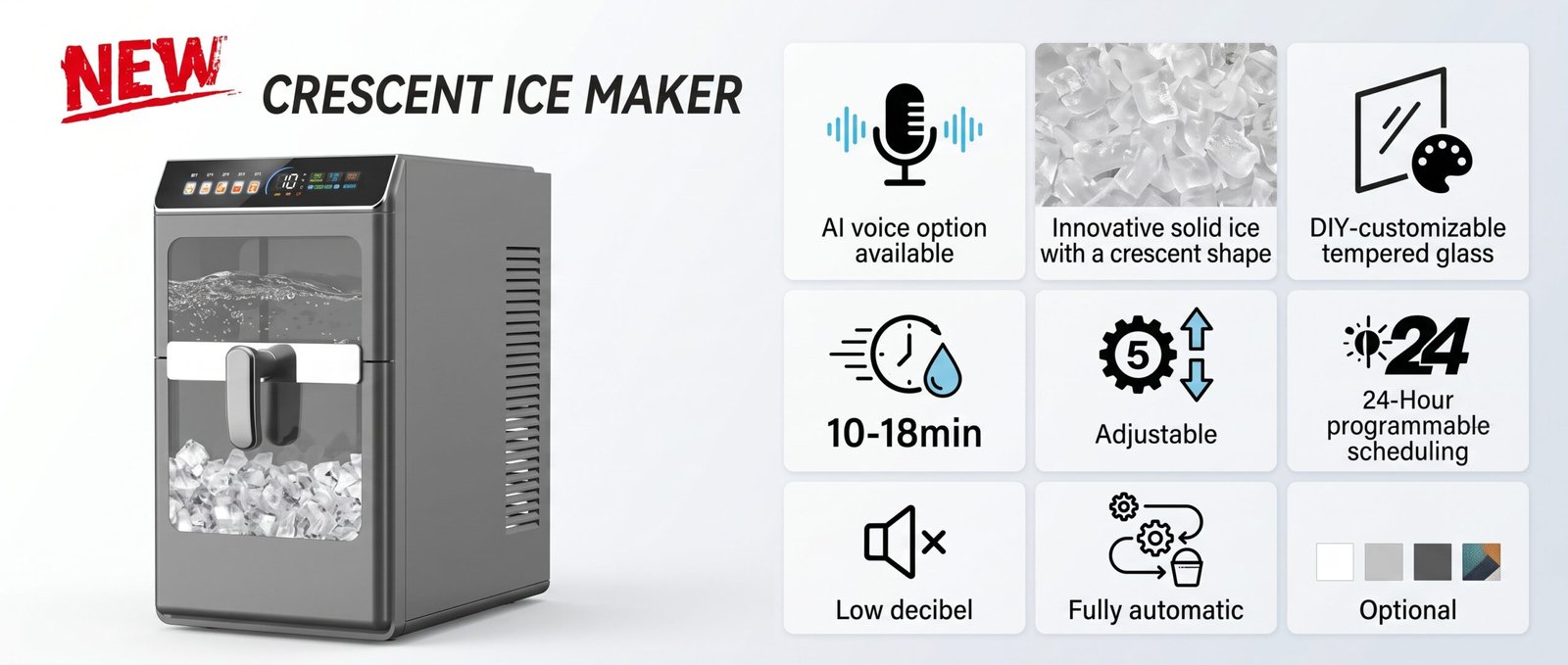

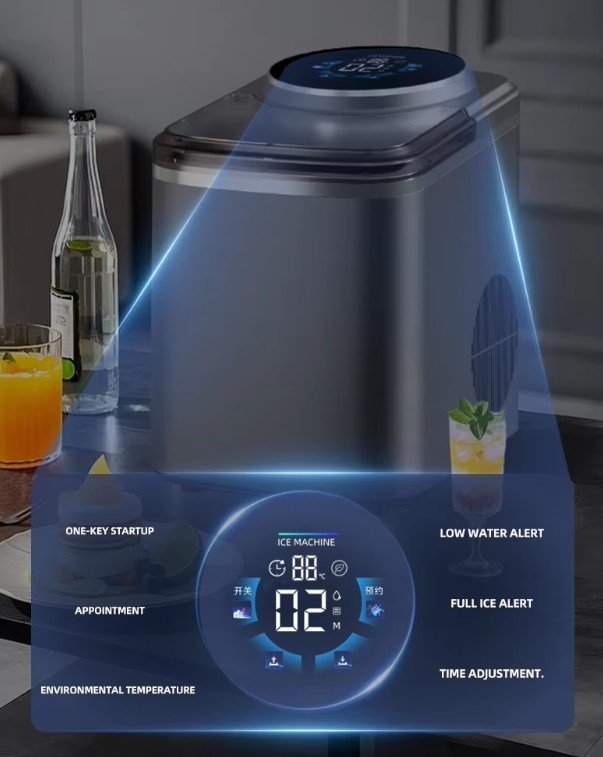

AZ-ICM18 — Crescent Ice Maker
Innovative solid crescent-shaped ice — 16 pieces per cycle in 10–18 minutes. Stainless-steel body, AI voice option, DIY-customisable tempered-glass panel, 5-level thickness adjustment and 24-hour programmable scheduling.
| Specification | AZ-ICM18 |
|---|---|
| Ice Type | Solid Crescent Shape |
| Rated Voltage | 220/240V~50Hz or 110V~50Hz/60Hz |
| Electric Current | 0.84A |
| Power | 120W |
| Ice Making Cycle | 16 cubes per cycle · 10–18 min |
| Daily Output | 12 KG / 24H |
| Water Tank Capacity | 1.5 L |
| Ice Storage | 1.2 KG |
| Refrigerant | R290 (Eco-Friendly) |
| N.W. / G.W. | 12 / 13 KG |
| Product Size | 350 × 240 × 418 mm |
| Package Size | 405 × 285 × 470 mm |
| Material | Stainless Steel Sheet Metal / ABS / PP / PC |
| Water Intake | Manual water addition / Auto water intake |
| Control Panel | Water shortage alert · Ice full alert · Fault alert · Ice thickness ±adjustment · Auto-clean · Preset timer |
Stainless steel body (vs PP plastic on ICM15/16/17).
AI voice option available on select configurations.
DIY tempered-glass panel — customisable for OEM branding.
ECO-FRIENDLY TECHNOLOGY
R290 Refrigerant —
Better for Your Business & the Planet
All AZ-ICM15/16/17/18 models use R290 propane refrigerant — a natural, low-GWP (Global Warming Potential = 3) alternative to synthetic refrigerants. R290 is approved for use in over 30 export markets including the US, EU and Australia, and meets the latest environmental compliance standards for commercial appliances.
FAQ
Frequently Asked Questions
Common questions about the AZ-ICM square and crescent ice maker series.
1 What is the difference between AZ-ICM15, ICM16 and ICM17?
2 How is the AZ-ICM18 crescent ice maker different from the square ice series?
3 Can I order with custom branding or OEM packaging?
GET STARTED TODAY
Ready to Order Your
Square or Crescent Ice Maker?
Tell us your preferred model (ICM15/16/17 square or ICM18 crescent), water supply preference, quantity and destination — factory-direct quote within 24 hours. OEM from 50 units.
Response within 24 hours · CE & RoHS certified · Ships from Taizhou, China
