Self-service water and ice vending machine
| Item | 160KG Model | 320KG Model | 450KG Model | 900KG/day Model |
| Voltage | AC 220V 50Hz/ 60Hz | AC 220V 50Hz/ 60Hz | AC 220V 50Hz/60Hz | 3phase AC 380V 50Hz/3phase AC 220V 60Hz |
| Total Power | 2.5KW | 3.3KW | 4.0KW | 5.8KW |
| Rated Current | 220V/11.5A | 220V/15A | 18.2A | 380V/15.3A 220V/26.4A |
| 24 hours capacity | 160KG/20℃ | 320KG/20℃ | 450KG/20℃ | 900KG/20℃ |
| Ice cube size | 22mm×22mm×22mm | 22mm×22mm×22mm | 22mm×22mm×22mm | 22mm×22mm×22mm |
| Ice mold cell number | 198 | 396 | 540 | 1080 |
| Compressor power | 1P | 2P | 3P | 6P |
| Refrigerant | R404a | R404a | R404a | R404a |
| Ice making type | Circulating spray | Circulating spray | Circulating spray | Circulating spray |
| Cooling type | Fan cool ing | Fan cool ing | Fan cool ing | Fan cool ing |
| Ice tank capacity | 110L | 110L | 110L | 150L |
| Source water | Municipal water | Municipal water | Municipal water | Municipal water |
| Source water prssure | ＞0.2MPa | ＞0.2MPa | ＞0.2MPa | ＞0.2MPa |
| Source water flow rate | ＞500L/H | ＞500L/H | ＞500L/H | ＞500L/H |
| Circulating tank refill rate | ＞5L/min | ＞5L/min | ＞5L/min | ＞5L/min |
| Compressor power | 1.1KW | 1.1KW | 1.1KW | 1.1KW |
| Air compressor capacity | ≥6.2M³/H | ≥6.2M³/H | ≥6.2M³/H | ≥6.2M³/H |
| Air compressor maximum working pressure | 0.8MPa | 0.8MPa | 0.8MPa | 0.8MPa |
| Air tank capacity | 30L | 30L | 30L | 30L |
| Ice selling way | bag ice + bulk ice | bag ice + bulk ice | bag ice + bulk ice | bag ice + bulk ice |
| Price method | Unit price×Weight | Unit price×Weight | Unit price×Weight | price×Weight |
| Payment method | IC Card/Bill/Coin/Give Change/GSM Remote Monitor | IC Card/Bill/Coin/Give Change/GSM Remote Monitor | IC Card/Bill/Coin/Give Change/GSM Remote Monitor | IC Card/Bill/Coin/Give Change/GSM Remote Monitor |
| (Can Choose by different needs) | (Can Choose by different needs) | (Can Choose by different needs) | (Can Choose by different needs) | |
| Ice bag dimension | 1-4KG ice bag 300mm×560mm 5-7KG ice bag 300mm×750mm | 1-4KG ice bag 300mm×560mm 5-7KG ice bag 300mm×750mm | 1-4KG ice bag 300mm×560mm 5-7KG ice bag 300mm×750mm | 1-4KG ice bag 300mm×560mm 5-7KG ice bag 300mm×750mm |
| Bag type | Break even roll bag | Break even roll bag | Break even roll bag | Break even roll bag |
| Bag QTY per roll | 300mm×560mm-250pcs/roll 300mm×750mm-200pcs/roll | 300mm×560mm-250pcs/roll 300mm×750mm-200pcs/roll | 300mm×560mm-250pcs/roll 300mm×750mm-200pcs/roll | 300mm×560mm/250pcs 300mm×750mm/200pcs |

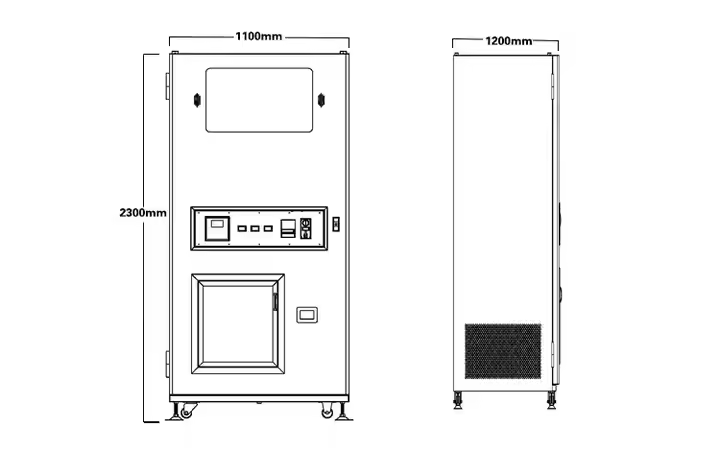

| Machine dimension | W110cm×D120cm×H230cm | W110cm×D120cm×H230cm | W110cm×D120cm×H230cm | W170cm×D135cm×H230cm |
| Inlet water/Drange | G1/2 Male thread | G1/2 Male thread | G1/2 Male thread | G1/2 Male thread |
Self-service water and ice vending machine
1. Luxurious waterproof steel cabinet, front-door-open design, safe and hygenic, durable and easy to install.
2. All parts contacting with ice and water adopt food grade stainless steel #304.
3. Advanced Intelligent coin, bill and IC card payment control system.
4. Fully automatic purification, ice making, ice packing and vending.
5. Highly efficient and stable bagging system, dispensing bag, filling ice in the bag and sealing the bag automatically.
6. Optional bulk ice dispensing and auto bagged ice to meet customer’s requirements.
7. Automatic machine stop for water full and shortage of ice/water/bag with alarm. 8. Advanced Reverse Osmosis purification system, NSF standard.
User of RO production water machine want to replace filter element to keep water quality good for long time , the cycle of
replacing filter element according to good or bad of water source and mineral composition ,or use water detector to check.
replacing filter element according to good or bad of water source and mineral composition ,or use water detector to check.
Products Description
Self-service ice vending machine
1, Material: Stainless Steel (304) and powder-coated steel
2, Waterproof steel cabinet, safety, tidy and healthy
3, Stainless steel vending compartment
4, Digital vend counter to record the vending situation 4, Source water: Tap water
5, The high efficient spray ice technology with circulated water making the ice square and transparent Selling with bulk ice and bagged ice at the same time
Material:stainless steel (304) for the water tank and powder coated for the machine body
Dimension: W180cm×D100cm×220cm including the wheel’s high
Waterproof steel cabinet,safety, tidy and healthy Stainless steel vending compartment with Coin-operated,
with induction IC card and bill accepter for payment system Intelligent separate coin/coin changer, automatically store coin Digital vend counter to record the vending situation Power supply: 220V AC, 50Hz/110V AC,60Hz
Source water: tap water
Water Vending Features:
Delivery pump flow rate: 8L per minute
Advanced RO purification technology, water quality in accord with the international standards
9-stage filtration, No ozone bottle washed
24 hours uninterrupted UV disinfection, guaranty the water quality
Convenient to replace filters and easy to maintain
Ice vending features:
Use efficient spray ice film to make ice, automatically supply water, make ice, with bagging system
Use efficient spray ice film to make ice, automatically supply water, make ice, with bagging system
Self-service RO water dispenser
Our Self-service water dispenser does not have the function of coin, only the function of card payment.
1. You can configure a large number of recharge cards, and then you can sell them to consumers. Consumers can swipe their cards to get water. If there is no money in the cards, you can recharge them with the recharge machine.
2. You can configure a recharge machine and only purchase a small number of recharging cards. When the consumer comes to buy water, you can swipe the card to sell water to the customer.
3. If the machine is in your retail store, you can also choose to sell water in cash transaction.
2. You can configure a recharge machine and only purchase a small number of recharging cards. When the consumer comes to buy water, you can swipe the card to sell water to the customer.
3. If the machine is in your retail store, you can also choose to sell water in cash transaction.
It’s a kind of fresh water purified by filtering, infiltrating and adsorbing the tap water, so as to achieve the goal of purifying the water. It does not need man-made, storefront and covers an area of only 1 square metre. 24-hour on-site water production, all-weather self-service supply, consumers bring their own containers, using IC smart card swipe the machine, and then press the filling key, you can complete the entire purchase process.
Characteristic：
With the development of economy and the improvement of people’s living standard, people pay more and more attention to the quality of life. Water is the source of life. Every household needs water. The emergence of water vending machine facilitates people to drink fresh water. It can be installed in residential areas, streets, supermarkets, schools, units and other venues. It can sell water automatically 24 hours, which facilitates people’s requirements for drinking water and achieves a convenient way of drinking water.
Performance：
1. The machine body adopts static plasma cutting of galvanized cold-rolled steel plate, carbon dioxide protection welding process, lathe finishing and forming, and the inner and outer surfaces are treated with topcoat for anti-corrosion, waterproof and beautification.
2. Internal membrane system, the treated water quality can reach direct drinking.
3. The power system adopts electric drive technology. The water vending machine runs smoothly, has no noise and low energy consumption.
4. Make the automatic control program accurate.
1. The machine body adopts static plasma cutting of galvanized cold-rolled steel plate, carbon dioxide protection welding process, lathe finishing and forming, and the inner and outer surfaces are treated with topcoat for anti-corrosion, waterproof and beautification.
2. Internal membrane system, the treated water quality can reach direct drinking.
3. The power system adopts electric drive technology. The water vending machine runs smoothly, has no noise and low energy consumption.
4. Make the automatic control program accurate.
11 stages of water treatment processes:
1, The first stage 20 inch 5 micron pp cotton filter element can filter the sediment in the water, rust and other large visible objects.
2, The second stage is 20 inch granular activated carbon, which can filter the peculiar smell, residual chlorine, colloid and some heavy metals in the water.
3, The third stage is 20 inch sintered activated carbon, which can filter the peculiar smell, residual chlorine, colloid and some heavy metals in the water.
4, The fourth stage, 20 inch 1 micron pp cotton filter element, intercepts the sediment and rust in the water again to protect the RO membrane.
5, The fifth stage RO reverse osmosis membrane is used to filter harmful substances such as bacteria, heavy metals, microorganisms and residual pesticides in water.
6, The sixth grade large t33 coconut shell activated carbon improves the taste and softens the water quality, and the water quality is sweet.
7, The seventh grade big t33 coconut shell activated carbon improves the taste and softens the water quality, and the water quality is sweet.
8, The eighth grade small t33 coconut shell activated carbon improves the taste, softens the water quality and makes the water sweet.
9, The ninth grade small t33 coconut shell activated carbon improves the taste, softens the water quality and makes the water sweet..
10, Level 10 ozone sterilization, sterilization and algaecide.
11, The 11th level UV sterilization ensures the purity of water again.
2, The second stage is 20 inch granular activated carbon, which can filter the peculiar smell, residual chlorine, colloid and some heavy metals in the water.
3, The third stage is 20 inch sintered activated carbon, which can filter the peculiar smell, residual chlorine, colloid and some heavy metals in the water.
4, The fourth stage, 20 inch 1 micron pp cotton filter element, intercepts the sediment and rust in the water again to protect the RO membrane.
5, The fifth stage RO reverse osmosis membrane is used to filter harmful substances such as bacteria, heavy metals, microorganisms and residual pesticides in water.
6, The sixth grade large t33 coconut shell activated carbon improves the taste and softens the water quality, and the water quality is sweet.
7, The seventh grade big t33 coconut shell activated carbon improves the taste and softens the water quality, and the water quality is sweet.
8, The eighth grade small t33 coconut shell activated carbon improves the taste, softens the water quality and makes the water sweet.
9, The ninth grade small t33 coconut shell activated carbon improves the taste, softens the water quality and makes the water sweet..
10, Level 10 ozone sterilization, sterilization and algaecide.
11, The 11th level UV sterilization ensures the purity of water again.
Sales Manager : Amanda Liu
Wechat/Whatsapp: +86 17821797229
Email:Amanda@vendmachinery.com
Send Inquiry
Send Inquiry
Payment system
Bill Acceptor
Imported from abroad, the bill acceptor utilizes a standard MDB interface. It can accurately recognize every cash.
Coin Acceptor
High-precision coin validator for vending and payment systems.
Credit cardreader
Secure NFC/QR payments for cards and mobile wallets
Identity Age Recognizer
AI-powered facial recognition for instant age verification
Coin Receiver
It can do fault detection, deposit and withdrawal function in one, and can return currency of 6 prices.
Variable Bill Acceptor
Receiving capacity up to 200 bills
Customization process
01. Consultation and Needs Confirmation
⦁ Contact our professional team to share your requirements. Our consultants will communicate with you to understand your needs, preferences, and business goals.
02. Machine Design Stage
⦁ Our design team creates a customized plan based on your specifications. During this phase, you can propose amendments, and we’ll provide market insights to ensure the design aligns with industry trends.
03. Drawing and Function Confirmation
⦁ We produce a detailed design draft for your approval, including 3D renderings and technical specifications. Our team works closely with you to finalize the most suitable design.
04. Custom Production
⦁ Once the design is confirmed, we begin custom production using high-quality materials and advanced manufacturing techniques.
05. Testing and Adjustment
⦁ After production, we provide physical photos and videos of the machine for your confirmation. Our professional technicians conduct rigorous testing to ensure stability, functionality, and performance. Once approved, we arrange shipment.
06. Technical Support and Tracking Services
⦁ We offer 7*24 hours online technical support to address any questions or issues.
⦁ Our team provides ongoing assistance and advice to ensure your vending machines operate smoothly and efficiently.
Certification
Why Choose Miracle?
Customization: White label and OEM/ODM services available.
Fast Production: Efficient lead times with rigorous quality testing.
Global Support: One-year warranty and lifetime technical assistance.
Flexible Payments: Multiple payment methods and currencies accepted.
Easy Operation: User-friendly software for beginners and advanced users.
Solutions to Product and Service Queries
Yes, we offer white label services and can customize vending machines with your brand name and logo. Our ODM projects have no MOQ, while OEM services require a minimum order quantity of 10 units.
The lead time depends on your order size, but typically, mass production takes 2-3 weeks. Before delivery, we conduct rigorous testing to ensure the quality and performance of your vending machines.
Yes, we provide a one-year warranty for all vending machines and lifetime technical assistance. Our team is always available to support you with any issues or questions.
We accept various payment methods, including T/T, L/C at sight, Credit Card, Western Union, PayPal, Escrow, and Alibaba.com Trade Assurance. We also accept payments in multiple currencies for your convenience.
We primarily ship by sea, which takes 25-45 days to arrive at your location. For faster delivery, we offer competitive express shipping options through DHL or FedEx, with a delivery time of 3-5 days.
Yes, our sales platform is user-friendly and easy to learn. It provides real-time sales, stock, and profit data. You can also open subsidiary accounts under your main account to manage your agents or remotely operated machines. We provide a detailed user manual to guide you step by step.
